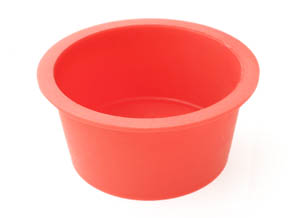

Tapered Caps
& Plugs
|
|
Page 5 of 5
all measurements are in millimetres
Code |
d1 |
d2 |
d3 |
d4 |
h |
D |
To fit thread size as cap |
To fit thread size as plug |
STC87.5 |
87.5 |
93.6 |
90.5 |
84.3 |
34.3 |
96.7 |
- |
- |
STC88.1 |
88.1 |
93.3 |
89.9 |
85.1 |
28.6 |
96.5 |
- |
- |
STC92.1 |
92.1 |
97 |
94 |
88.3 |
32 |
100 |
- |
- |
STC93.5 |
93.5 |
100.3 |
97.8 |
89.9 |
26.5 |
107.5 |
- |
- |
STC94.5 |
94.5 |
100.6 |
97 |
91 |
34.5 |
103.6 |
- |
- |
STC96,5 |
96.5 |
102 |
101 |
94 |
31 |
110 |
- |
- |
STC97 |
97 |
101.5 |
99.5 |
95 |
30 |
109 |
- |
- |
STC98 |
98 |
102 |
98.5 |
94.8 |
24.7 |
107.2 |
- |
- |
STC98.2 |
98.2 |
103.3 |
99 |
95 |
28.8 |
106 |
- |
- |
STC101 |
101 |
107 |
103 |
98 |
28.6 |
109 |
- |
- |
STC101.9 |
101.9 |
107.5 |
103 |
98 |
28.6 |
109 |
- |
- |
STC106.7 |
106.7 |
111.7 |
107.4 |
101.5 |
28.6 |
113.3 |
- |
- |
STC108 |
108 |
114.1 |
111.6 |
105.4 |
35.2 |
118.5 |
- |
- |
STC109 |
109 |
113 |
111 |
107 |
27 |
123 |
- |
- |
STC110 |
110 |
115 |
109 |
105.5 |
28 |
118.5 |
- |
- |
STC111.5 |
111.5 |
117.6 |
115 |
107.5 |
35 |
122 |
- |
- |
STC112.1 |
112.1 |
114.3 |
109.8 |
107.5 |
28.6 |
116.8 |
- |
- |
STC124 |
124 |
128 |
125 |
121 |
23 |
134 |
- |
- |
STC129 |
129 |
135.1 |
132 |
124 |
36.5 |
139.5 |
- |
- |
STC133 |
133 |
137 |
134.2 |
130.2 |
22 |
143 |
- |
- |
STC139.5 |
139.5 |
145.6 |
140 |
135 |
36.5 |
150 |
- |
- |
STC141 |
141 |
150 |
148 |
138 |
25.4 |
164 |
- |
- |
STC146.8 |
146.8 |
152.6 |
148.6 |
142.8 |
33 |
159.5 |
- |
- |
STC153.7 |
153.7 |
161.5 |
160 |
152 |
29.6 |
178.9 |
- |
- |
STC157 |
157 |
163 |
160 |
152 |
36.5 |
167.5 |
- |
- |
STC202.9 |
202.9 |
203.8 |
198.8 |
198 |
32.7 |
218.7 |
- |
- |
STC203.5 |
203.5 |
208.5 |
205.9 |
200.9 |
24 |
216 |
- |
- |
STC216 |
216 |
223.6 |
223 |
213 |
29.1 |
241.5 |
- |
- |
STC252.2 |
252.2 |
257.8 |
247.8 |
247.2 |
33.8 |
272.5 |
- |
- |
STC304.2 |
304.2 |
308.4 |
299.4 |
299.2 |
33.9 |
322.6 |
- |
- |
|
Material: polyethylene (LDPE)
Colour: red.
Special articles on demand. |
