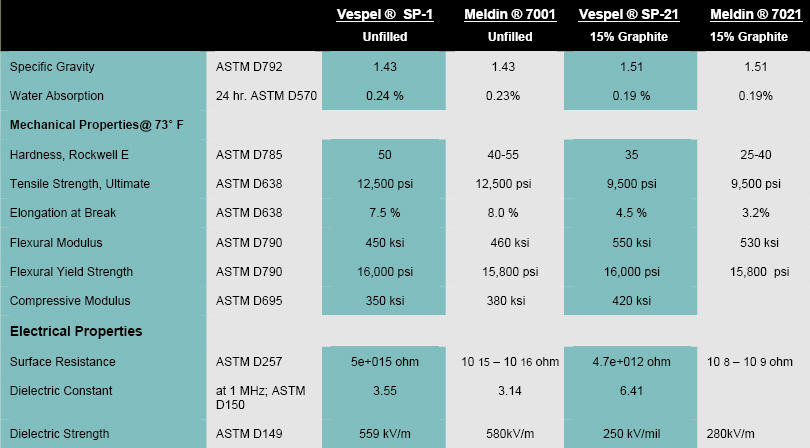

Comparative Data For Vespel & Meldin Trade Names For Polyimide Shapes.


Meldin 7001 & Vespel SP-1 both meet:
ASTM D6456-99, Type 1 Standard Specification

Mil-R-46198 Type 1 Military Specification (superseded by ASTM D6456-99)
SAE AMS 3644G, Type 1 Aerospace Material Specification
CPW411 Rev. H Pratt & Whitney Specification
MCS 5016, Type 1- Honeywell Specification
UL V0-5VA flammability rating

Vespel Polyimide Specifications

VESPEL GRADES

Vespel
SP-1
Vespel
SP-1 is the unfilled base resin grade. SP-1 provides maximum physical strength, elongation, and toughness as well as the best electrical and thermal insulation values. Typical applications include spacers, high-temp fixtures, valve seats, balls, gaskets, insulators, and seals.

Vespel
SP-21
Vespel
SP-21 has 15% graphite by weight added to the base resin for increased wear resistance and reduced friction in applications such as bearings, thrust washers, bushings, seal rings, slide blocks and other wear applications. SP-21 has the highest mechanical properties of the graphite filled grades.

Vespel
SP-22
Vespel
SP-22 has 40% graphite by weight for enhanced wear resistance, lower friction, improved dimensional stability (low coefficient of thermal expansion), and stability against oxidation. Typical uses are the same as those for SP-21.

Vespel
SP-211
Vespel
SP-21 has 10% PTFE and 15% graphite by weight added to the base resin for the lowest coefficient of friction over a wide range of operating conditions. It also has excellent wear resistance up to 300F (149C). Typical applications include sliding or linear bearings as well as many wear and friction uses listed above.

Vespel
SP-3
Vespel
SP-3 is 15% moly-filled (molybdenum disulfide solid lubricant) for wear and friction resistance in vacuum and other moisture-free environments where graphite actually becomes abrasive. Typical applications include seals, bushings, bearings, gears, and other wear surfaces in outer space, ultra-high vacuum or dry gas applications.


TYPICAL PROPERTIES of VESPEL

ASTM or UL test Property SP-1 SP-21 SP-22 SP-211 SP-3
- Filler Material Unfilled 15% Graphite 40% Graphite 10% PTFE,
15% Graphite
15% Moly
PHYSICAL
D792 Density (lb/in)
(g/cm)
0.051
1.43
0.055
1.51
0.060
1.65
0.056
1.55
0.058
1.60
D570 Water Absorption, 24 hrs @ 73F (%)
48 hrs @ 122F (%)
0.24
0.72
0.19
0.57
0.14
0.42
0.21
0.49
0.23
0.65
MECHANICAL
D638 Tensile Strength, Ultimate @ 73F (psi)
@ 500F (psi)
12,500
6,000
9,500
5,500
7,500
3,400
6,500
3,500
8,200
-
D638 Tensile Modulus (psi) - - - - -
D638 Tensile Elongation, Ultimate @ 73F (%)
@ 500F (%)
7.5
6.0
4.5
6.0
3.0
2.0
3.5
3.0
4.0
-
D790 Flexural Strength, Ultimate @ 73F (psi)
@ 500F (psi)
16,000
9,000
16,000
9,000
13,000
6,500
10,000
5,000
11,000
5,500
D790 Flexural Modulus @ 73F (psi)
@ 500F (psi)
450,000
250,000
550,000
370,000
700,000
400,000
450,000
200,000
475,000
270,000
D695 Compressive Strength, 10% strain @ 73F (psi) 19,300 19,300 16,300 14,800 18,500
D695 Compressive Modulus (psi) 350,000 420,000 475,000 300,000 350,000
D785 Hardness, Rockwell E45-60 E25-45 E5-25 E1-20 E40-55
D256 IZOD Notched Impact (ft-lb/in) 0.8 0.8 - - 0.4
  Poisson's Ratio 0.4 0.4 - - -
THERMAL
D696 Coefficient of Linear Thermal Expansion
(x 10-5 in./in./F)
3.0 2.7 2.1 3.0 2.9
D648 Heat Deflection Temp (F / C)
at 264 psi

680 / 360

680 / 360
- - -
- Max Continuous Operating Temp (F / C) 500 / 260 500 / 260 500 / 260 500 / 260 500 / 260
C177 Thermal Conductivity
(BTU-in/ft-hr-F)
(x 10-4 cal/cm-sec-C)

2.0
6.9

6.0
20.7

12.0
41.3

5.3
18.3

3.2
11.0
UL94 Flammability Rating V-0 V-0 V-0 V-0 V-0
ELECTRICAL
D149 Dielectric Strength (V/mil) short time, 1/8" thick 560 250 - - -
D150 Dielectric Constant at 1 MHz 3.55 13.2 - - -
D150 Dissipation Factor at 1 MHz 0.0034 0.0106 - - -
D257 Volume Resistivity (ohm-cm)at 50% RH 1014 - 1015 1012 - 1013 - - -



GENERAL PROPERTIES

Vespel is one of the highest performing engineering plastics currently available. Vespel will not melt and can operate continuously from cryogenic temperatures to 550F (288C), with excursions to 900F (482C). Vespel parts consistently exhibit superior performance in a variety of applications requiring low wear and long life in severe environments.

VESPEL FEATURES

• Excellent temperature resistance • High wear resistance (especially SP-21) • Dimensionally stable • Resistant to radiation • Extremely low outgassing • Relatively easy to machine

VESPEL APPLICATIONS

• Rotary seal rings • Thrust washers and discs • Bushings • Flanged bearings • Plungers • Printer wire guides • Spline couplings • Wear strips • Valve seats • Thermal and electrical insulators • Wafer clamping, polishing and grinding rings • Wafer guides & carriers • Vacuum pads • Die pickup collets

NOTE: The information contained herein are typical values intended for reference and comparison purposes only. They should NOT be used as a basis for design specifications or quality control. Contact us for manufacturers' complete material property datasheets.
All values at 73F (23C) unless otherwise noted.


VESPEL is a registered trademark of DuPont
